Rated Voltage
Operating Voltage
CRl
Beam Angle of LED
Junction Temperature
Working Temperature
Working Humidity
Life
THD
Protection
230V
100- 270V
>80
120°
<80°
-10° to 50°°
10% to 90% RH
Z50,000 Hrs
<10%
IP-20
| Model No | Power | Size (Ø mm) | Cutting Size (mm) | Frequency | Power Factor | Luminous | Colour Temp | Price |
|---|---|---|---|---|---|---|---|---|

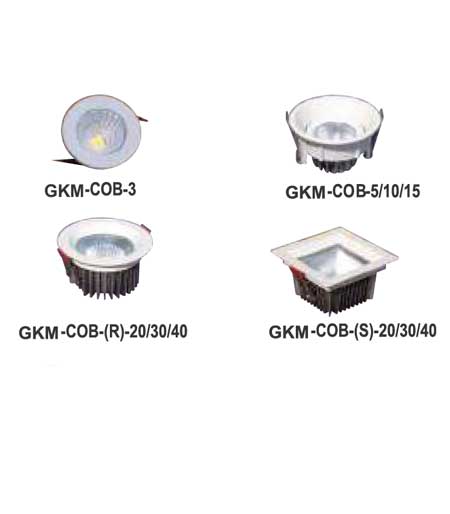

| GKM-COB-03 | 3 Watt | 53 Ø | 46 Ø | 1245.00 | ||||
| GKM-COB-05 | 5 Watt | 85 Ø | 72 Ø | 1700.00 | ||||
| GKM-COB-10 | 10 Watt | 100 Ø | 82 Ø | 2300.00 | ||||
| GKM-COB-15 | 15 Watt | 115 Ø | 100 Ø | 3450.00 | ||||
| GKM-COB(R)-20 | 20 Watt | 130 Ø | 110 Ø | 50 Hz± 5% | > 0.95 | >120 Lum/W | CW 5500-6500K NW 4000K WW 2700-3000K | 4650.00 |
| GKM-COB(R)-30 | 30 Watt | 165 Ø | 145 Ø | 4999.00 | ||||
| GKM-COB(R)-40 | 40 Watt | 210 Ø | 190 Ø | 7995.00 | ||||
| GKM-COB(S)-20 | 20 Watt | 130 X 130 | 110 X 110 | 4650.00 | ||||
| GKM-COB(S)-30 | 30 Watt | 165 X 165 | 145 X 145 | 4999.00 | ||||
| GKM-COB(S)-40 | 40 Watt | 210 X 210 | 190 X 190 | 7995.00 |
Rated Voltage
Operating Voltage
CRl
Beam Angle of LED
Junction Temperature
Working Temperature
Working Humidity
Life
THD
Protection
230V
100- 270V
>80
120°
<80°
-10° to 50°°
10% to 90% RH
Z50,000 Hrs
<10%
IP-20
| Model No | Power | Size (Ø mm) | Cutting Size (mm) | Frequency | Power Factor | Luminous | Colour Temp | Price |
|---|---|---|---|---|---|---|---|---|

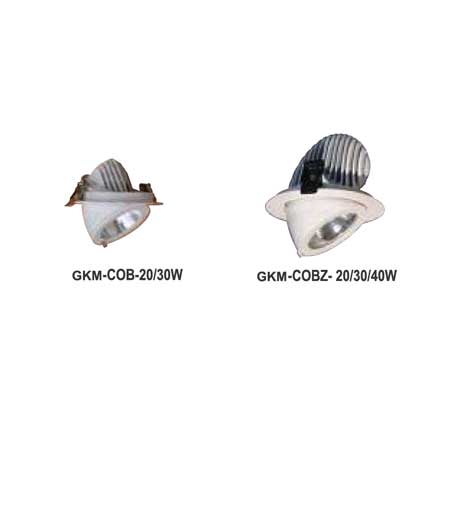

| GKM-COBZ-20 | 20 Watt | 135 | 115 | |||||
| GKM-COBZ-30 | 30 Watt | 135 | 115 | |||||
| GKM-COBZD-20 | 20 Watt | 135 | 115 | 50 Hz± 5% | > 0.95 | >120 Lum/W | CW 5500-6500K NW 4000K WW 2700-3000K | 3600.00 |
| GKM-COBZD-30 | 30 Watt | 135 | 115 | 3600.00 | ||||
| GKM-COBZD-40 | 40 Watt | 135 | 115 | 3600.00 |
