LED Panel Light

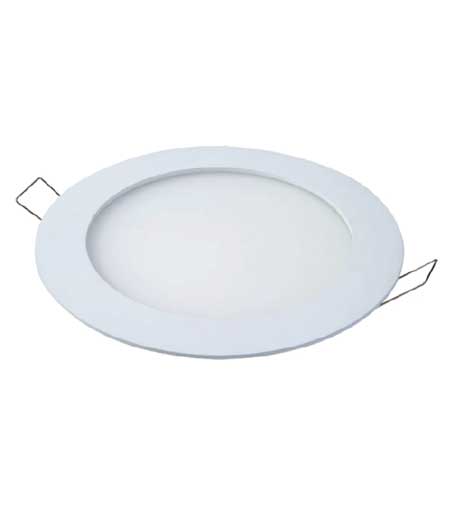

Recess Led Panel Round

Description

Rated Voltage

Operating Voltage

CRI

Beam Angle of Led

Junction Temperature

Working Temperature

Working Humidity

Life

THD

Protection

Specification

230V

100- 270V

>80

120°

<80°

-10 to 50°

10% to 90% RH

>50,000 Hrs

<10%

IP-20

Model No Power Size (Ø mm) Cutting Size (Ø mm) Frequency Power Factor Luminous Colour Temp Price
GKM-RP-RD-6W 6 Watt 1 95 695.00
GKM-RP-RD-12W 12 Watt 1 125 815.00
GKM-RP-RD-15W 15 Watt 1 125 50 Hz ± 5% > 0.95 >120 Lum/W CW 5500-6500K NW 4000K WW 2700-3000K 1145.00
GKM-RP-RD-18W 18 Watt 1 145 1160.00
GKM-RP-RD-18W-B 18 Watt 2 175 1835.00
GKM-RP-RD-24W 24 Watt 2 175 2300.00

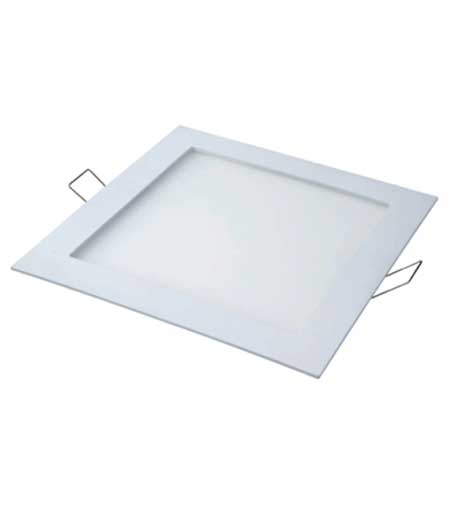

Recess Led Panel Square

Description

Rated Voltage

Operating Voltage

CRI

Beam Angle of Led

Junction Temperature

Working Temperature

Working Humidity

Life

THD

Protection

Specification

230V

100- 270V

>80

120°

<80°

-10 to 50°

10% to 90% RH

>50,000 Hrs

<10%

IP-20

Model No Power Size (Ø mm) Cutting Size (mm) Frequency Power Factor Luminous Colour Temp Price
GKM-RP-SQ-6W 6 Watt 120 X 120 95 X 95 695.00
GKM-RP-SQ-12W 12 Watt 150 X 150 125 X 125 815.00
GKM-RP-SQ-15W 15 Watt 150 X 150 125 X 125 50 Hz ± 5% > 0.95 >120 Lum/W CW 5500-6500K NW 4000K WW 2700-3000K 1145.00
GKM-RP-SQ-18W 18 Watt 170 X 170 145 X 145 1160.00
GKM-RP-SQ-24W 24 Watt 200 X 200 175 X 175 1835.00
GKM-RP-SQ-32W 32 Watt 242 X 242 215 X 215 2300.00

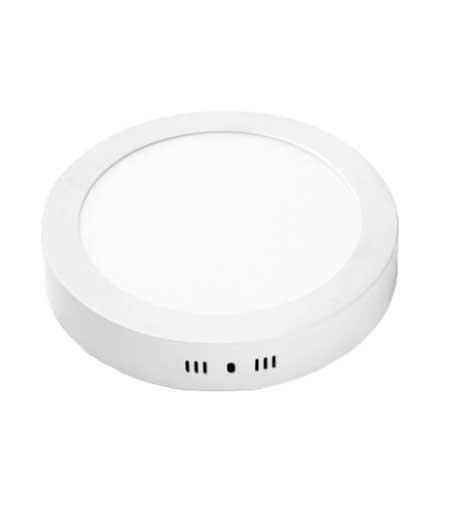

Surface Led Panel Round

Description

Rated Voltage

Operating Voltage

CRI

Beam Angle of Led

Junction Temperature

Working Temperature

Working Humidity

Life

THD

Protection

Specification

230V

100- 270V

>80

120°

<80°

-10 to 50°

10% to 90% RH

>50,000 Hrs

<10%

IP-20

Model No Power Size (Ø mm) Frequency Power Factor Luminous Colour Temp Price
GKM-SP-RD-6W 6 Watt 120 845.00
GKM-SP-RD-12W 12 Watt 117 50 Hz ± 5% > 0.95 >120 Lum/W CW 5500-6500K NW 4000K WW 2700-3000K 1155.00
GKM-SP-RD-18W 18 Watt 225 1430.00

Surface Led Panel Square

Description

Rated Voltage

Operating Voltage

CRI

Beam Angle of Led

Junction Temperature

Working Temperature

Working Humidity

Life

THD

Protection

Specification

230V

100- 270V

>80

120°

<80°

-10 to 50°

10% to 90% RH

>50,000 Hrs

<10%

IP-20

Model No Power Size (Ø mm) Frequency Power Factor Luminous Colour Temp Price
GKM-PL-SQ-6W 6 Watt 120 X 120 845.00
GKM-PL-SQ-12W 12 Watt 170 X 170 1155.00
GKM-PL-SQ-18W 18 Watt 220 X 220 50 Hz ± 5% > 0.95 >120 Lum/W CW 5500-6500K NW 4000K WW 2700-3000K 1430.00
GKM-PL-SQ-24W 24 Watt 250 X 250 3115.00
GKM-PL-SQ-32W 32 Watt 250 X 250 3300.00

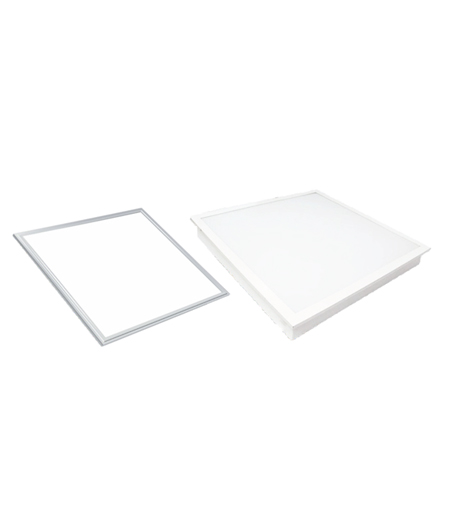

Led Panel 2'x2' - Recess

Description

Rated Voltage

Operating Voltage

CRI

Beam Angle of Led

Junction Temperature

Working Temperature

Working Humidity

Life

THD

Protection

Specification

230V

100- 270V

>80

120°

<80°

-10 to 50°

10% to 90% RH

>50,000 Hrs

<10%

IP-20

Model No Power Size (Ø mm) Cutting Size (mm) Frequency Power Factor Luminous Colour Temp Price
GKM-PL-2X2-001-(R-1) 34 Watt 595 X 595 550 X 550 3790.00
GKM-PL-2X2-001-(R-1) 36 Watt 595 X 595 550 X 550 3790.00
GKM-PL-2X2-001-(R-1) 42 Watt 595 X 595 550 X 550 50 Hz ± 5% > 0.95 >120 Lum/W CW 5500-6500K NW 4000K WW 2700-3000K 3790.00
GKM-PL-2X2-001-(R-2) 34 Watt 595 X 595 550 X 550 3530.00
GKM-PL-2X2-001-(R-2) 36 Watt 595 X 595 550 X 550 3530.00
GKM-PL-2X2-001-(R-2) 42 Watt 595 X 595 550 X 550 3530.00

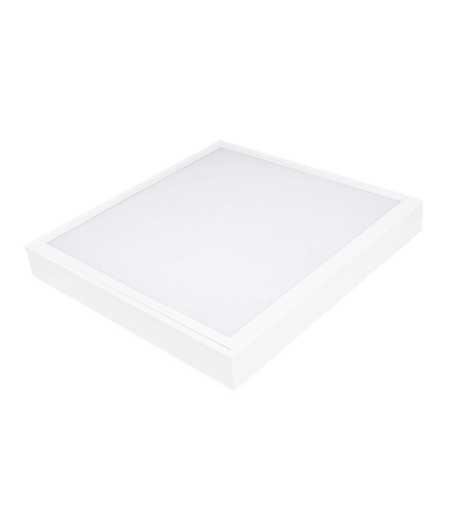

Led Panel 2'x2' - Surface

Description

Rated Voltage

Operating Voltage

CRI

Beam Angle of Led

Junction Temperature

Working Temperature

Working Humidity

Life

THD

Protection

Specification

230V

100- 270V

>80

120°

<80°

-10 to 50°

10% to 90% RH

>50,000 Hrs

<10%

IP-20

Model No Power Size (Ø mm) Frequency Power Factor Luminous Colour Temp Price
GKM-PL-2X2-001-(S) 34 Watt 595 X 595 3540.00
GKM-PL-2X2-001-(S) 36 Watt 595 X 595 50 Hz ± 5% > 0.95 >120 Lum/W CW 5500-6500K NW 4000K WW 2700-3000K 3540.00
GKM-PL-2X2-001-(S) 42 Watt 595 X 595 3540.00
