Rated Voltage
Operating Voltage
CRM
Beam Angle of LED
Junction Temperature
Working Temperature
Working Humidity
Life
THD
Protection
230V
100- 270V
>80
120°
<80°
-10° to 50°°
10% to 90% RH
Z50,000 Hrs
<10%
IP-20

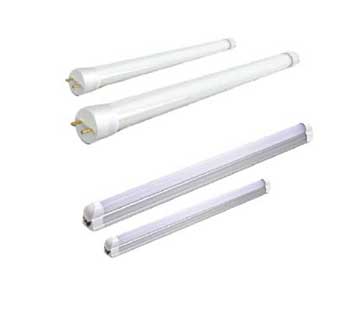

| Model No | Power | Size (Ø mm) | Frequency | Power Factor | Luminous | Colour Temp | Price |
|---|---|---|---|---|---|---|---|
| GKM-TL-9 | 9 Watt | 600 | 550.00 | ||||
| GKM-TL-18 | 18 Watt | 1200 | 50 Hz± 5% | > 0.95 | >100 Lum/W | CW 5500-6500K NW 4000KWW 2700-3000K | 620.00 |
| GKM-TLF-9 | 9 Watt | 600 | 550.00 | ||||
| GKM-TLF-18 | 18 Watt | 1200 | 620.00 |
Housing :- Powder coated housing made of Extrude Aluminium profiles.
Maunting :- SuitabIe for Surface / Ceiling fixtures.

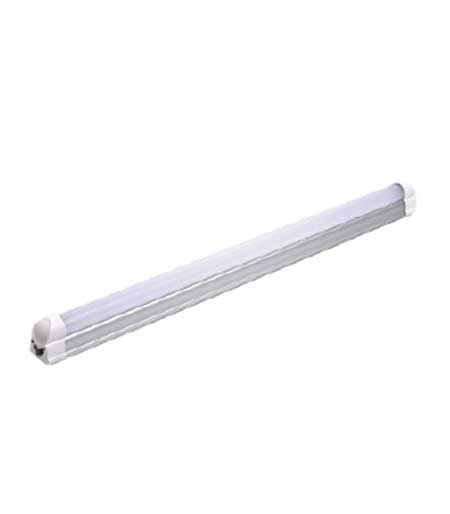

| Model No | Suitable for | Size (mm) | Price |
|---|---|---|---|
| CHANNELBOX-1X18 | 1x18W / 1x20W LED Tube | 1200 | 295.00 |
| CHANNELBOX-2X18 | 2x18W / 2x20W LED Tube | 1200 | 395.00 |
H-28, Site C, Surajpur Industrial Area, Greater Noida, Uttar Pradesh-201306
All our products are manufactured as per IEC, ISI, BIS Standards and approved by the Ministry Of New & Renewable Energy, Government Of India. Our manufacturing plant is also accredited with ISO 9001 for manufacturing & marketing of Solar Power products.
