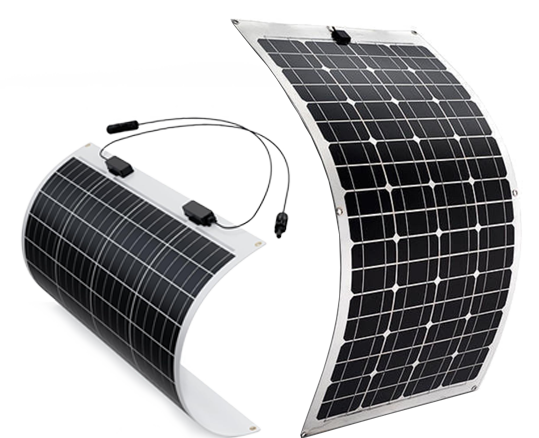

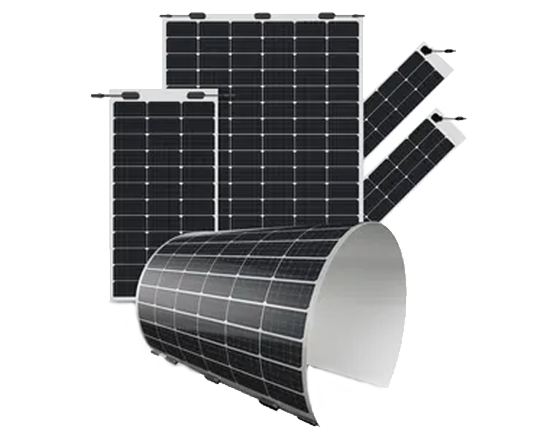

Flexible panels are typically made using thin-film solar cells, which are lighter and more flexible than the crystalline silicon cells used in traditional panels. They are lightweight and can be easily integrated into various structures, such as RVs, boats, and portable solar chargers.Flexible panels are easier to install on irregular surfaces compared to rigid panels. They can be glued or adhered directly onto surfaces without the need for mounting brackets.
| Model Number | GKM Flexi |
| Rated Power Pmax (Watt) | 520 |
| Number of Cells in Series (Nos.) | 144 |
| Open Circuit Voltage (Volts) | 49.68 |
| Max Peak Voltage Vmp (Volts) | 41.90 |
| Max Peak Current Imp (Amps) | 12.42 |
| Short Circuit Current Isc (Amps) | 13.04 |
| FF(%) | 80.00% |
| Active Area Efficiency (%) | 21.80% |
| Max System Voltage Vdc (Volts) | 1000 |
| Power Tolerance | ±3% |
| Max Series Fuse Rating (Amps) | 20 |
| Operating Temperature | -40°C to +85°C |
| Cell Type | Mono Perc |
| Solar cells Arrangement (Nos) | 12x6 || 12x6 |
| Cells Dimensions (mm) | 91x182 HC |
| Module Dimensions (mm) | 2246 * 1190 |
| Weight (Kg) | 9.5 ± 0.5 |
| Junction Box IP Rating | IP68 With 3 bypass diode |
| Connector Type | MC4 |
| Superstrate Type | ETFE Polymer |
| Junction Box | Front Side |
| Laminate Thickness (mm) | 3 ± 0.3 |
| Module Thickness (mm) | 20 |
| Colour Type | Black or White |
| Adhesive | Rear side |
