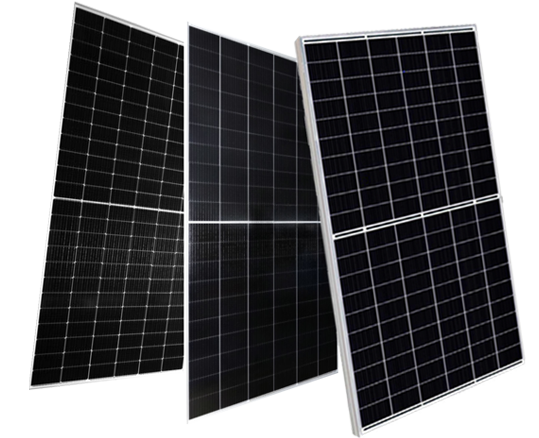

Mono Half Cut Panel

Monocrystalline half-cut panels combine the high efficiency of monocrystalline technology with the improved performance characteristics of half-cut cells. They typically have efficiency ratings similar to or higher than standard monocrystalline panels. By dividing the cells into halves, resistive losses within the cell are reduced. This is because the current is divided between two smaller cells, which reduces the electrical resistance and improves the overall efficiency of the panel.

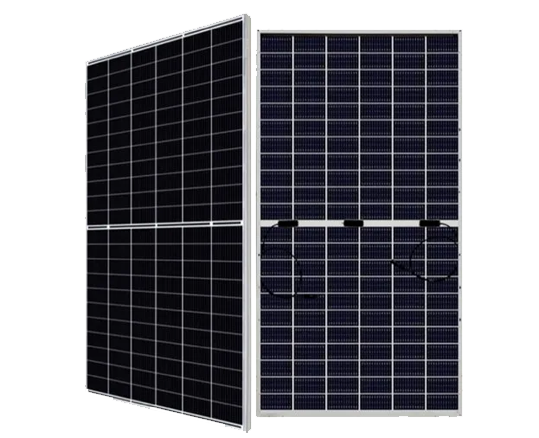

Key Features

High module conversion efficiency

IP68 rated junction box

Reliable quality leads to withstanding harsh environment

Excellent weak light performance

Extended wind and snow loads test

High PID Resistant

Electrical Properties

Wattage 450 Watts
No of cells 144 Cells (6 x 24)
Nominal Voltage 24 Volts
Optimum operating voltage (Vmp) 41.4 Volts
Open Circuit Voltage (Voc) 49.2 Volts
Maximum Voltage 41.41 Volts
Optimum Operating Current 11.61 Amps
Efficiency 20.7%

Mechanical Properties

Cell Orientation 144 (6X24)
Junction Box IP68
Output Cable 4mm2, positive 400 / negative 200mm length can be customized
Glass Single glass, 3.2mm coated tempered glass
Frame Anodized aluminum alloy frame
Weight 27.2kg
Dimension 2256 x 1133 x 35mm
