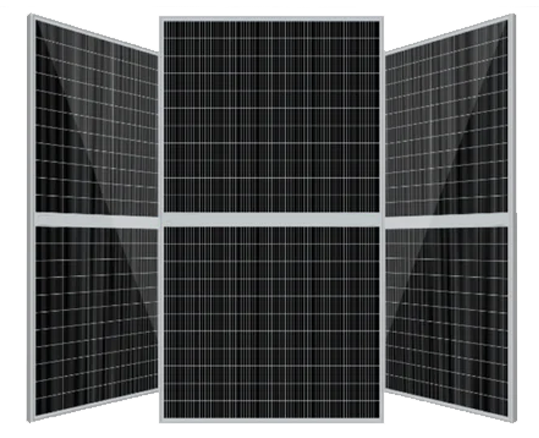

Mono - PERC Panel

Monocrystalline panels are robust and have a long lifespan, often lasting 25 years or more with minimal degradation in performance. They are space-efficient, meaning they generate more power per square foot compared to other types of solar panels. This technology boosts the panel's overall output by improving light absorption and reducing electron recombination. They offer higher efficiency levels, making them suitable for installations where space is limited or where maximum power generation is required.

Key Features

High-performance mono PERC cell structure

Higher energy density per square foot

Superior anti-reflective coating

Exceptional performance under low-light

Extended cable lengths for easier installation

Enhanced junction box sealing protects

Electrical Properties

Solar Panel Type Mono
Rate Maximum Power( Pmax/W) 445
Module Efficiency(%) 20.6
Open Circuit Volatge(Voc/V) 41.1
Short Circuit Current(Isc/A) 13.82
The voltage at Pmax(Vmp/V) 34.48
Current at Pmax(lmp/A) 12.91
Power Tolerance 0~+5w
Temperature Coefficient of Isc +0.046%℃
Temperature Coefficient of Voc -0.276%℃
Temperature Coefficient of Pmax -0.35%℃

Mechanical Properties

Solar Cell (Type/Size) MONO(182mm)
Solar Cells Number 120 Pcs (6*20)
Dimension 1909 x 1134 x 35mm
Weight 23.9Kg/Pcs
Structure 3.2 Glass + EVA film + Back
Frame Anodized aluminum alloy
Junction Box IP68、3*bypass diode
Cable Cross Section Size 4.0mm²,(+)300mm/(-)400mm
Mechanical Load Front 5400Pa/Back 2400Pa
Packing Number 31 Pcs/Pallet
Packing Volume 2.834 Cbm/Pallet
