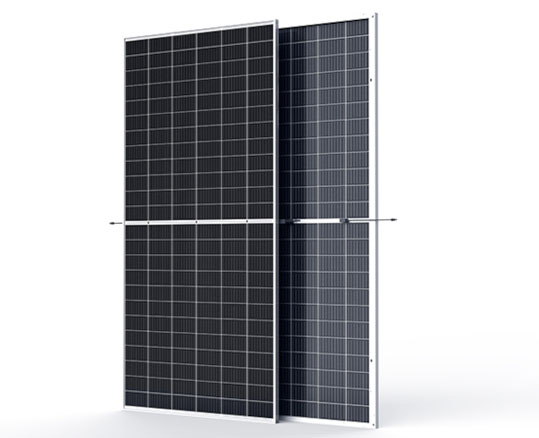

TopCon Panel

TopCon (Top Contact) solar cells are characterized by their unique cell structure where the contacts for extracting electrical current are located on the top surface of the cell. TopCon technology aims to improve cell efficiency by reducing the shading effect caused by front-side metal contacts found in traditional solar cells. This design allows for more effective utilization of the cell's surface area for light absorption and electricity generation. TopCon panels are known for their high conversion efficiency, which can range from 20% to over 25% in some cases. This efficiency is achieved through improved light capture and reduced energy losses compared to traditional solar cells.

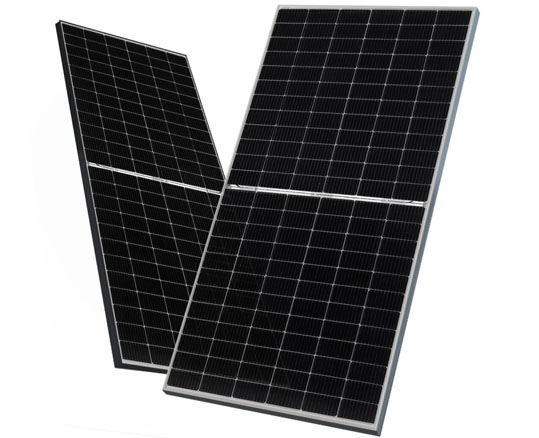

Key Features

Top Contact Solar Cells

High Efficiency

Low Light Performance

Durability and Reliability

Space Efficiency

Versatility in Applications

Technical Properties

PERFORMANCE UNDER STANDARD TEST CONDITIONS (STC)

Nominal Maximum Power (Pmax)	570W/24V	575W/24V	580W/24V	585W/24V	590W/24V
Optimum Operating Voltage (Vmp)	44.37	44.56	44.75	44.94	45.12
Optimum Operating Current (Imp)	12.85	12.91	12.97	13.02	13.08
Open Circuit Voltage (Voc)	52.39	52.60	52.80	53.01	53.21
Short Circuit Current(Isc/A)	13.54	13.59	13.65	13.71	13.76
Module Efficiency(%)	22.08	22.28	22.47	22.67	22.86

Bifacial OutPut - BackSide Power Gain at STC (*Bifaciality Factor 75% +-10%)

Nominal MAximum Power (Pmax) 5%	599W	604W	609W	614W	620W
Module SC Current/Efficiency 5%	14.21A / 23.21%	14.27A / 23.40%	14.33 A / 23.60%	14.39A / 23.71%	14.45A / 24.00%
Nominal Maximum Power (Pmax) 10%	627W	633W	638W	644W	649W
Module SC Current/Efficiency 10%	14.89 A / 24.29%	14.95 A / 24.53%	15.02 A / 24.72%	15.08 A / 24.95%	15.14 A / 25.14%
Nominal Maximum Power (Pmax) 25%	713 W	719 W	725 W	731 W	738 W
Module SC Current/Efficiency 25%	16.92A / 27.63%	16.99 A / 27.86%	17.06 A / 28.09%	17.13 A / 28.32%	17.20 A / 28.57%
